Vee Blocks
- Purpose made to form storage bays, retaining walls and cofferdams
- Stackable into multiple configurations
- Manufactured in C50 concrete to BS EN1992-1-1:2004 at 28 days

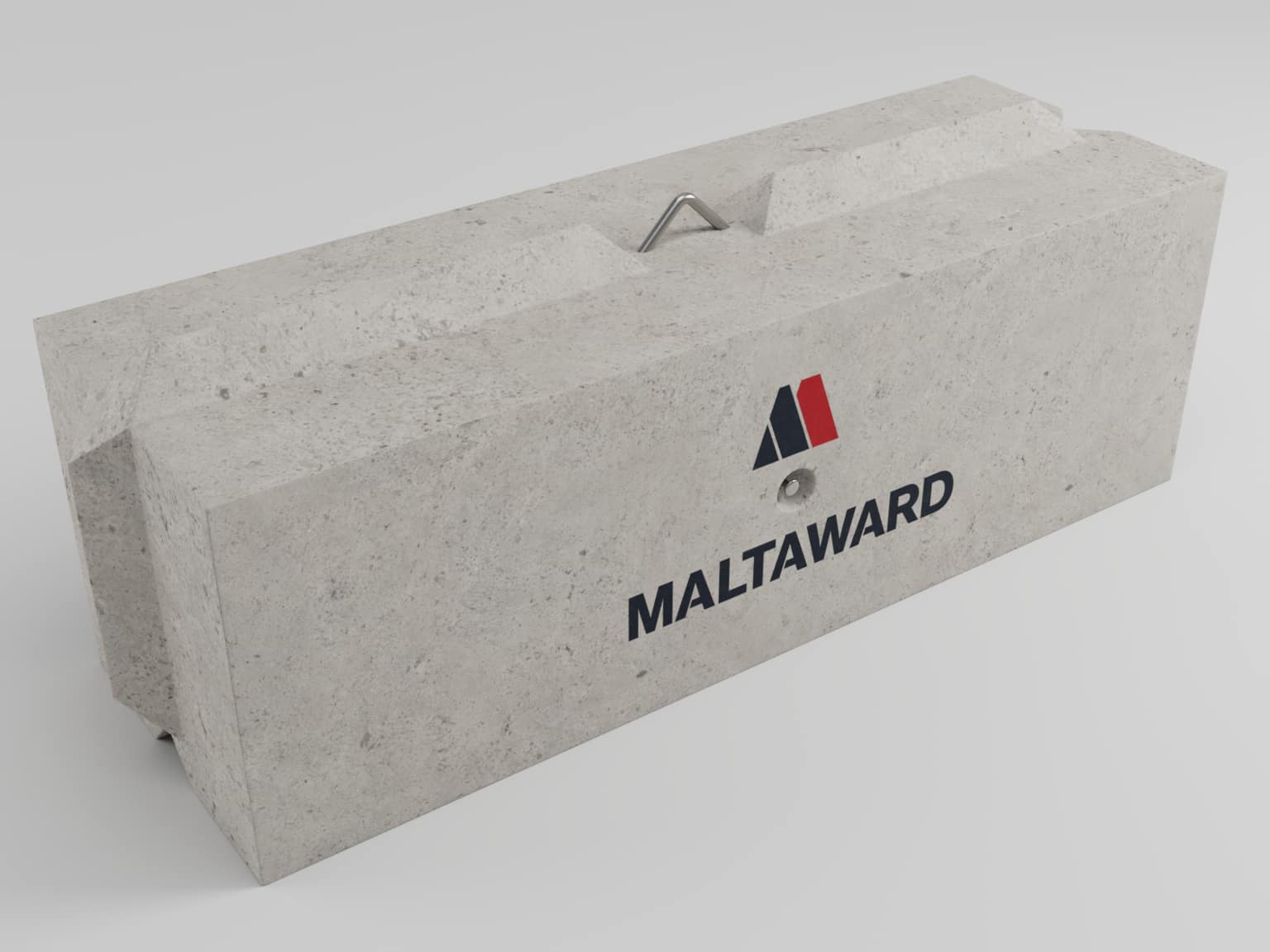

- The standard block is a B1 1830mm x 610mm x 610mm and weighs in at 1600kgs
- V blocks interlock with each other using a unique ‘V’ system along the base, sides and top giving incredible strength and stability.
- Made in 23 different variants
- Concrete is Class A1 Fire resistant in accordance EN13369
- Can be stacked to form walls 4.27m high
We offer fast and convenient nationwide delivery. See delivery options here or get in touch.

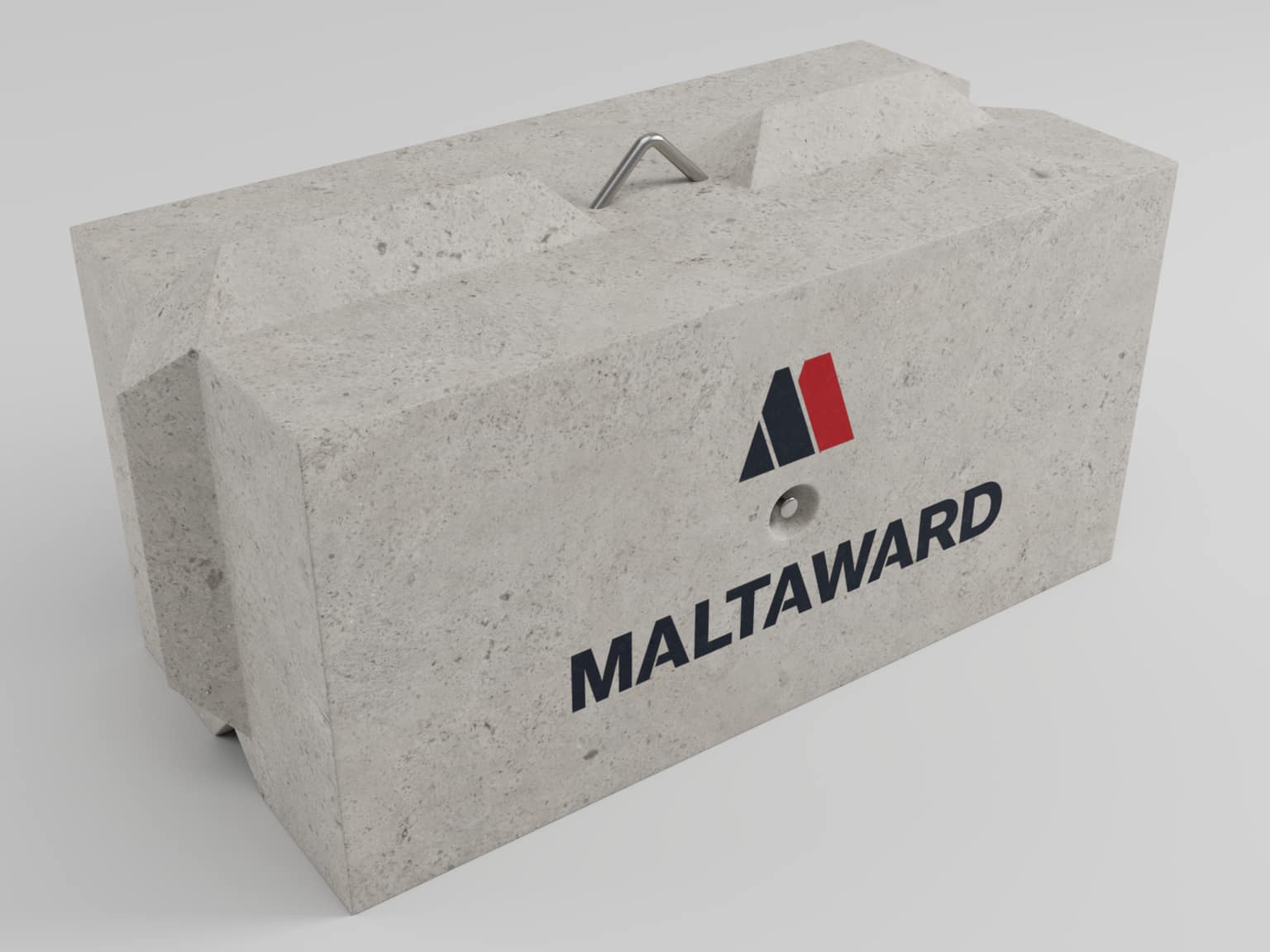

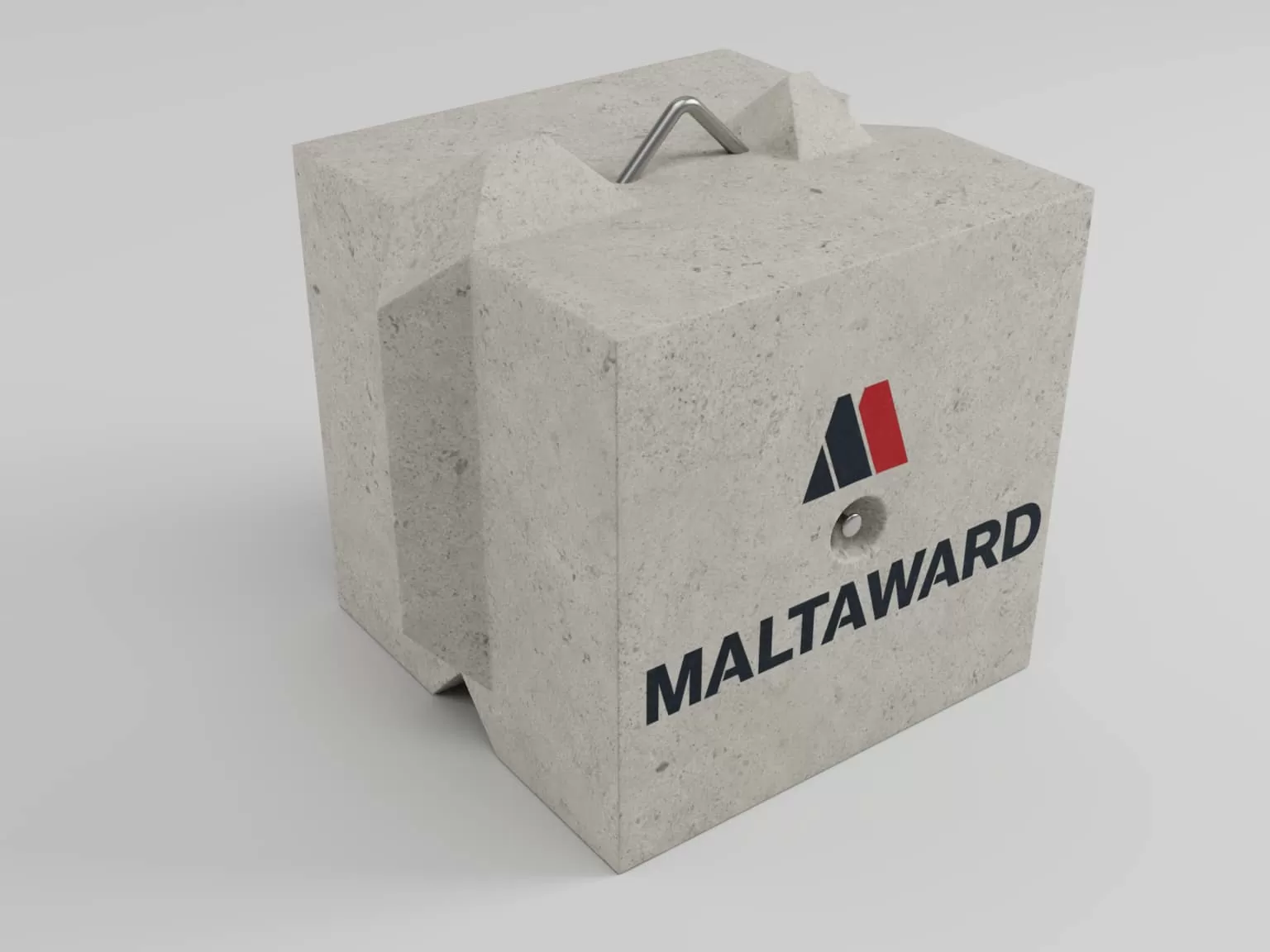

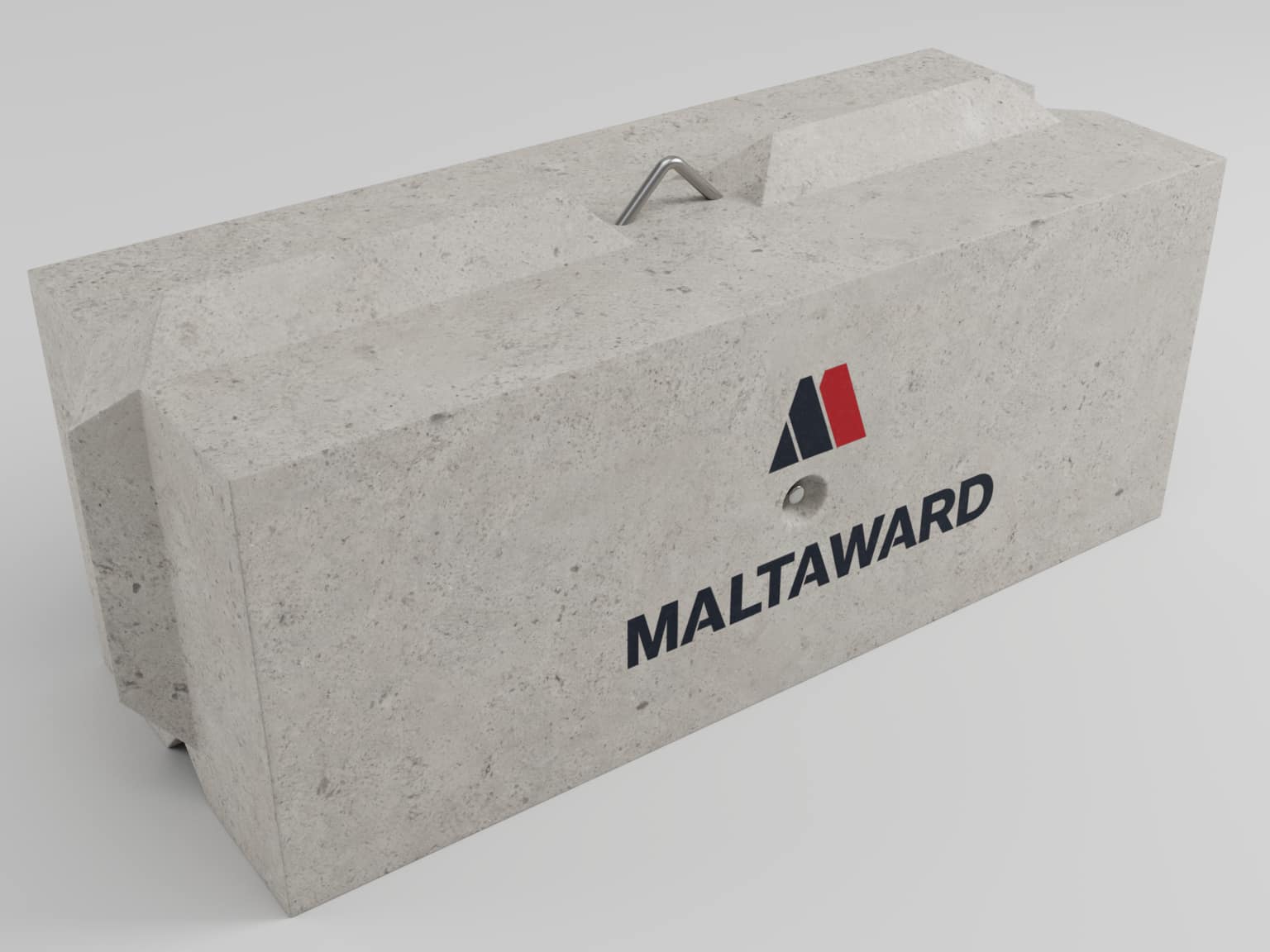

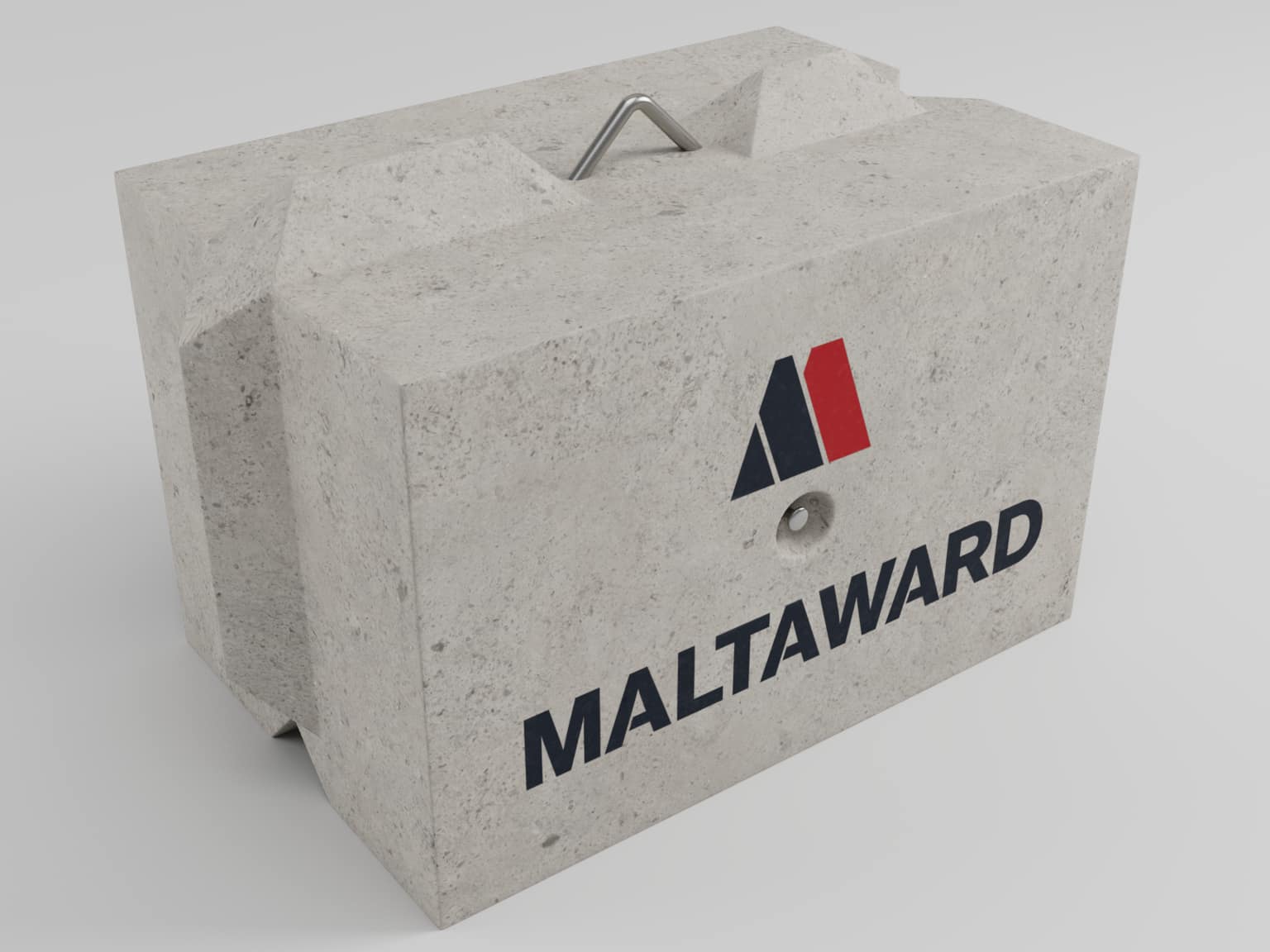

All blocks measure 610mm square in cross section but vary in length. B1 blocks are the standard type of block and are identified by having a V-shaped groove (female) on the bottom and one end of the block, and V-shaped projections (male) on the top and opposite end of the block. The direction of build is the direction in which the male projections should be pointing when assembling the wall.
B2 blocks are identical to B1 blocks with the exception that the male projection on the end of the block has been removed leaving a flat surface. The blocks are used to butt up to blocks which are at 90 degrees to the direction of build. They are also used at the end of walls to produce a smooth finish to the wall.
C1 and C2 blocks (combination blocks) interlock courses at corners. As well as having the usual groove in the bottom of the block, combis have transverse grooves running across the width of the block. This is designed to lock the blocks in the course below. C1 blocks, (as with B1 blocks), have the male V projection on the end of the block. C2 blocks have a flat male end as with B2 blocks.
T2 blocks are specifically designed for the formation of intermediate bay walls. These blocks have a flat male face.
610mm
610mm
610mm
533kg
915mm
610mm
610mm
800kg
1220mm
610mm
610mm
1067kg
1525mm
610mm
610mm
1333kg
1830mm
610mm
610mm
1600kg
1525mm
610mm
610mm
1333kg
1525mm
610mm
610mm
1333kg
610mm
610mm
610mm
533kg
915mm
610mm
610mm
800kg
1220mm
610mm
610mm
1067kg
1525mm
610mm
610mm
1333kg
1830mm
610mm
610mm
1600kg
610mm
610mm
305mm
266kg
915mm
610mm
305mm
400kg
1220mm
610mm
305mm
533kg
1220mm
610mm
305mm
533kg
1525mm
610mm
305mm
666kg
1830mm
610mm
305mm
800kg
Lifting point is by means of a 16mm inverted re-bar cast in during manufacture with hook using lifting chains or similar certified to Loler 1998.
Prior to lifting check the lifting point for wear or corrosion and check the block for cracks.
Vee Blocks Frequently Asked Questions
-
How high can V Blocks be stacked?
-
Are V Blocks compliant with a BS Standard?
-
Can V Blocks be used to form Fire blocks?
-
How do I get V Blocks to site?
-
Are V Blocks available in different sizes?
